Mills roll metal in enormous quantities and long lengths, to a schedule set months ahead. Fabricators need six feet of one thing and a single sheet of another, this week. The service centre exists to bridge that gap: it buys mill quantities, racks them, and breaks them down to the piece.
Understanding what happens in that building explains a great deal about why stock metal is priced, sized and finished the way it is.
Independent reference. This is an independent, non-commercial reference on metal forms, grades and mill processes. It sells nothing, quotes nothing and takes no orders, and it is not affiliated with any metal supplier, distributor or mill. See about this reference.
Breaking bulk

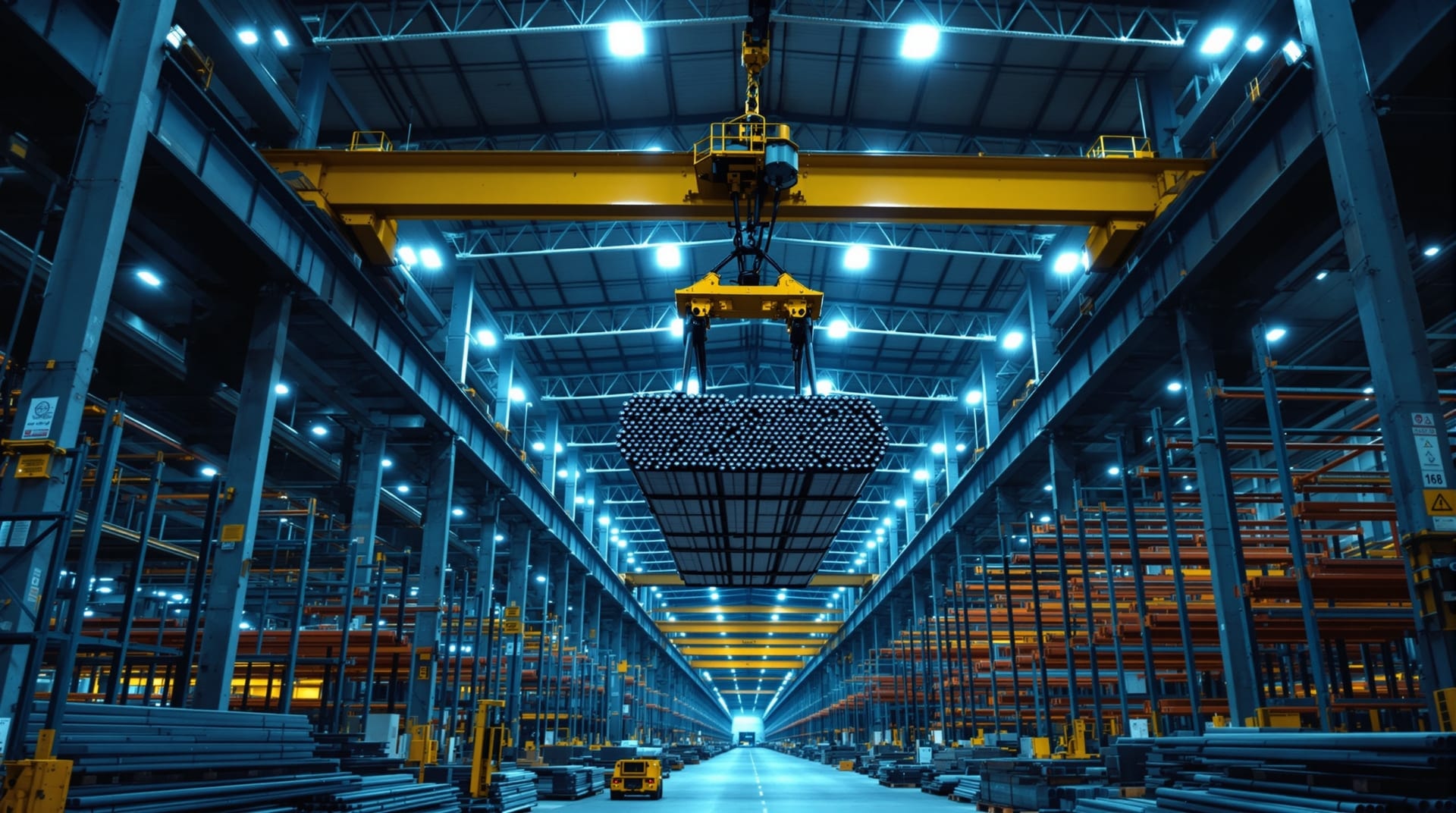

A mill sells bar by the bundle and sheet by the coil. A service centre buys those, stores them, and sells a single length or a single sheet — absorbing the inventory cost, the handling cost and the risk that a grade stops moving. That service is the bulk of the margin, and it is why a single length of bar costs several times the per-pound mill price.
It also explains stock lengths. Bar arrives in 20 foot lengths and is commonly sold in 20 or cut to 12; sheet arrives as coil and is cut to standard sheet sizes. Ask for a size outside those conventions and it becomes a cut piece with a cut charge, or it does not exist at all.
Processing
Most service centres run a processing department, and the operations are more or less standard across the industry.
Sawing and mitering
Horizontal bandsaws cut solid bar, tube and structural section to length, square or at an angle. The cut is cool, so there is no heat affected zone, and the edge is square enough to weld from directly. Capacity is described as a rectangular envelope — a saw specified at 18 inches high by 24 inches wide takes any section that fits inside it, in any length. Sawing is the slowest of the cutting methods and the most accurate.
Shearing
Sheet and plate are cut between a fixed and a moving blade. No heat, no kerf loss, and very fast, but capacity is a hard limit set by thickness and length together, and the edge carries the characteristic rollover-burnish-fracture-burr profile. Shear capacity is quoted as a thickness at a length — 3/8 inch at 12 feet is a substantial machine.
Punching
A punch and die shear a hole out of the material in one stroke. Fast and repeatable, and limited by the relationship between hole diameter and material thickness — as a working rule, a hole smaller in diameter than the material is thick will break punches. Punched holes are slightly tapered and have a burr on the exit side.
Brake work
Forming sheet and light plate between a punch and die. The two things that govern the result are springback, which requires overbending, and bend allowance, which means a flat blank is never simply the sum of the finished leg lengths. Both are covered on the sheet and plate page.
Burning
Oxyfuel preheats carbon steel to its ignition temperature and then blows a jet of oxygen through it; the reaction is exothermic, so the process largely fuels itself. It works on carbon steel and not on stainless or aluminium, because their oxides melt above the metal instead of below it — see oxyfuel cutting. It is economical on heavy plate and leaves a noticeable heat affected zone.
Plasma forces an ionised gas jet through a constricting nozzle and cuts any electrically conductive metal, including stainless and aluminium. Faster than oxyfuel on thinner material, narrower kerf, slight bevel on the cut face — see plasma cutting.
Laser gives the tightest tolerance, the narrowest kerf and the cleanest edge on sheet and light plate, and is the method of choice for parts that must nest efficiently or hold close dimensions.
All of these are powered cutting operations working with material that moves and edges that cut, and they sit squarely inside the scope of workplace machine guarding requirements.
Certification and traceability
The other thing a service centre carries is paperwork. Each heat of steel comes with a mill test report giving chemistry and mechanical properties, and material for coded or certified work has to be traced from that report to the piece. Once a bar leaves the rack unmarked, the traceability is gone — which is why certified material is segregated, marked and ordered as such from the beginning.
Why any of this matters to a buyer
Three practical consequences follow from the way service centres work. First, standard sizes are cheap and non-standard sizes are expensive, because standard sizes are already in the rack. Second, the processing limits are real limits — a shear that stops at 3/8 inch cannot be persuaded to take 1/2 inch, and the job moves to a saw or a burning table with a different cost and a different edge. Third, the more precisely a job is specified — form, grade, dimension, tolerance, finish, certification — the less of it gets decided by whoever picks the stock off the rack.
